TKHDG Hydraulic Detachable Gooseneck

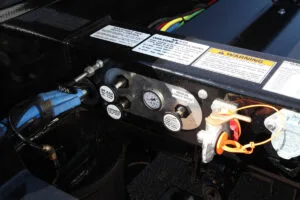

Adjustable Arched GooseneckThe arched design provides ample truck frame clearance, even at the lowest king pin height setting. The 7-position gooseneck door adjustment allows for a full 10" range of king pin height settings. The notched setting control bar for the control handle takes the guesswork out of setting the gooseneck doors in the desired position. Outrigger ConstructionI-beam style outriggers are mounted on the top and bottom flange and span the entire width of the side beam for optimum strength and support. Heavy-duty pullout front outriggers provide extra strength at the pivot point where the weight is concentrated during loading. Close-set outriggers at mid-deck prevent planks from tipping up when the load rolls over them. Adjustable Ride Height ControlAdjustable ride height control is standard on TK102HDG and TK110HDG models, with the controls conveniently located near the rear tail channel. Double-Hinged Ramp and Support LedgeThe 31” front loading ramps are doublehinged and reinforced with a support ledge for added strength. Because both hinges rest on the ledge, even heavy track-type equipment can be loaded without risk of “peeling off” the loading ramp. Our Hydraulic Detachable Gooseneck trailer has become the go-to choice for construction professionals with over two decades of being North America’s bestselling detachable lowboy trailer. It’s engineered to make unhooking, loading, unloading, and hooking up again a simple one-person operation. This trailer has dependable load-hauling strength, durability, and versatility that can stand up to any challenge—even “tough to scale” loads Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King TKHDG Hydraulic Detachable Gooseneck Protect Your Investment with Our Complete Line of Services Trail King Paint Options
